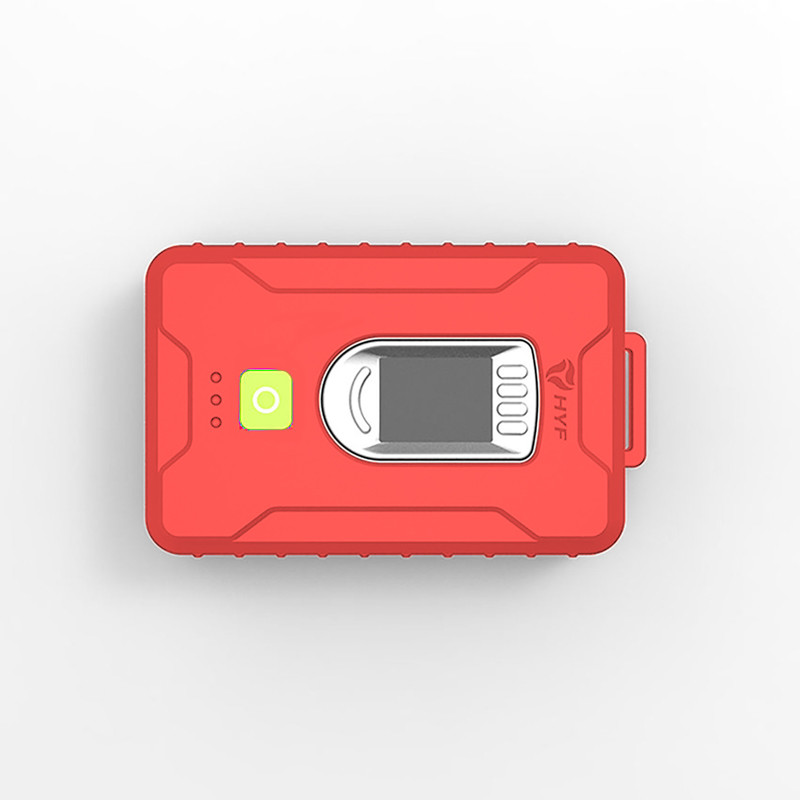

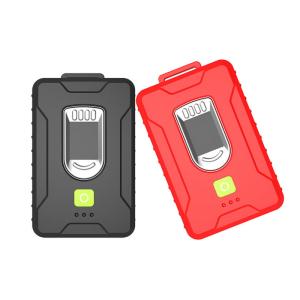

Biometric Capacitive Single Fingerprint Scanner With USB Interface
Capture Mode: Capacitive Touch
Sensor size: 10.4mm x 14.4mm
Imaging area: 208*288 pixel
Array: 508 DPI
CPU:150MHz,1M Bits Flash Memory, 128KB SRAM
Sensor: AuthenTec TCS2
Fingerprint capacity; 500-1000 (3000pcs maximum)
FAR: < 0.001 %(Security Level:3 )
FRR: < 0.1 %(Security Level:3)
Match mode: 1:N identification and 1:1 verification
Time of Response: 0.45s Min&1.5s Max
Features
v International Standard: ISO/IEC 19794-2:2005 , ISO/IEC 19794-2:2011, ISO/IEC 19794-4:2005
ISO/IEC 19794-2:2011, PIV profile of ANSI/INCITS 378 :2004
v High Image Quality: capacitance fingerprint technology with superior image quality
v Strong Adaption: Good adaption for dry, moist and rough fingerprints
v Correction and Authentication: Support auto correction and 360 degree rotation authentication
v OS Support: Android, windows and Linux
SDK Support : Windows, Android, HTML (Firefox, IE10,IE11,IE12,Chrome)
Specification
| Capture Mode | Capacitive Touch |
| Sensor size | 10.4mm x 14.4mm |
| Imaging area | 208*288 pixel |
| Array | 508 DPI |
| CPU | 150MHz,1M Bits Flash Memory,128KB SRAM |
| Sensor | PD302C |
| Fingerprint capacity | 500-1000 (3000pcs maximum) |
| FAR | < 0.001 %(Security Level:3 ) |
| FRR | < 0.1 %(Security Level:3) |
| Match mode | 1:N identification and 1:1 verification |
| Time of Response | 0.45s Min&1.5s Max |
| Communication Mode |
| Interface | USB2.0 |
| USB connection | Connect with Other Device Directly |
| Operation Environment |
| Power Supply | Voltage: DC5V±10% |
| Current | Current: <120ma |
| Working Environment | Temperature:-10℃+70℃, Humidity:20%– 80% |
Product details
Product Tags:
|
|
10.4mm X 14.4mm Capacitive Single Fingerprint Scanner USB Interface Biometric Images
|
